Purpose & Objectives
The SFU Compass is designed to provide an interactive, accessible kiosk navigation interface for students, faculty, and visitors across the Simon Fraser University Burnaby campus. The platform integrates a graph pathfinding algorithm (Dijkstra) with physical hardware controls.
The Arduino hardware ecosystem operates in tandem with a custom standalone desktop application (.exe). The executable manages high-speed COM port serial data buffering, hardware interrupts, and coordinate broadcast, powering the entire embedded routing workflow.
Project Group Members
Marcus Lang
Project Developer & Web Design Contributor
Marlon Yu
Project Developer & Web Design Contributor
Amirmhadi Mazaheri
Project Developer & Hardware Contributor
Taha Arkian
Project Developer & Software Contributor
Hardware Component Inventory
Arduino Uno R4 WiFi
Handles core logic, signal processing, and communicates with the desktop system via UART over USB.
LCD Screen Module
Displays live status, node selection feedback, and serial connection state directly on the physical hardware setup.
2-Axis Joystick Component
Allows intuitive manual navigation through menu landmarks and input triggers on the physical kiosk.
Breadboard & Jumpers
Provides organized power routing, common grounding, and pin breakdown connecting all peripherals.
Circuit Schematic & Setup

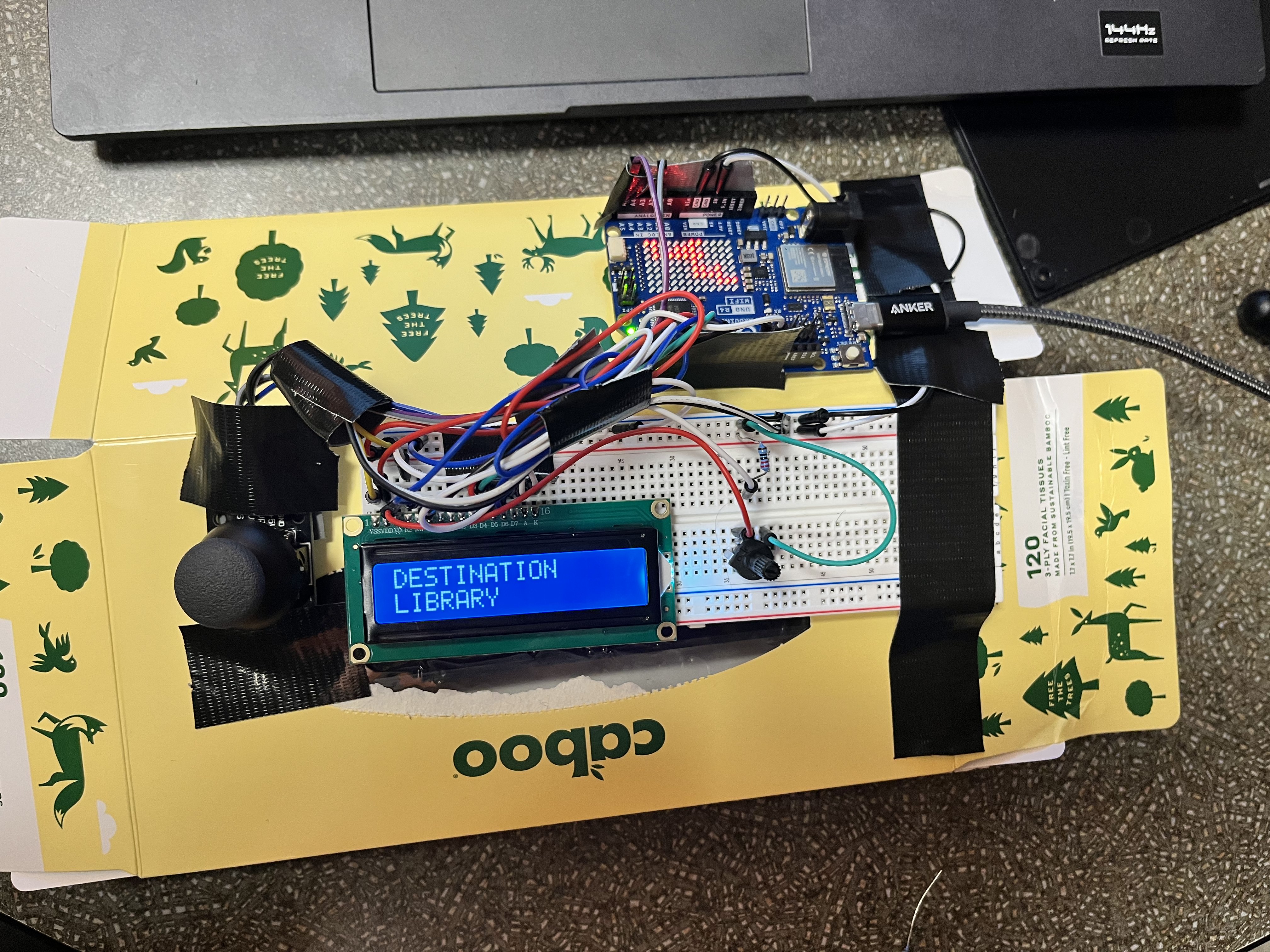

Wiring layout connecting Arduino Uno R4 WiFi, LCD display, and joystick.
Circuit Wiring Diagram
Video Demonstration
Live video showing physical joystick menu controls, LCD feedback, and executable synchronization.
